WFF Vortex Fine Filter

Wastewater treatment and reuse

Addressing sediment build-up and maintaining water quality in rainwater harvesting systems.

Contact

Logo

WISY AG

Company Established Year

Since 1989

Who is this solution for

Govt, Business, Individual, NGO

Info

Available

To sell
Build new partnerships

Looking

To find distributors

Project Status

In commerce

Looking to expand internationally

Yes

Doing business in

worldwide

Awards and certifications

★

German Innovation Award

2016

Recognized For Innovative Stainless-Steel Vortex Filters For Rainwater Harvesting.

★

ISO 9001 Certification

2019

Certified Quality Management System For Design And Manufacture Of Water Systems.

★

ISO 14001 Certification

2020

Certified Environmental Management System For Sustainable Manufacturing.

Sustainable Development Goals

SDG 6
SDG 9
SDG 11
SDG 13
Main Image

Product description

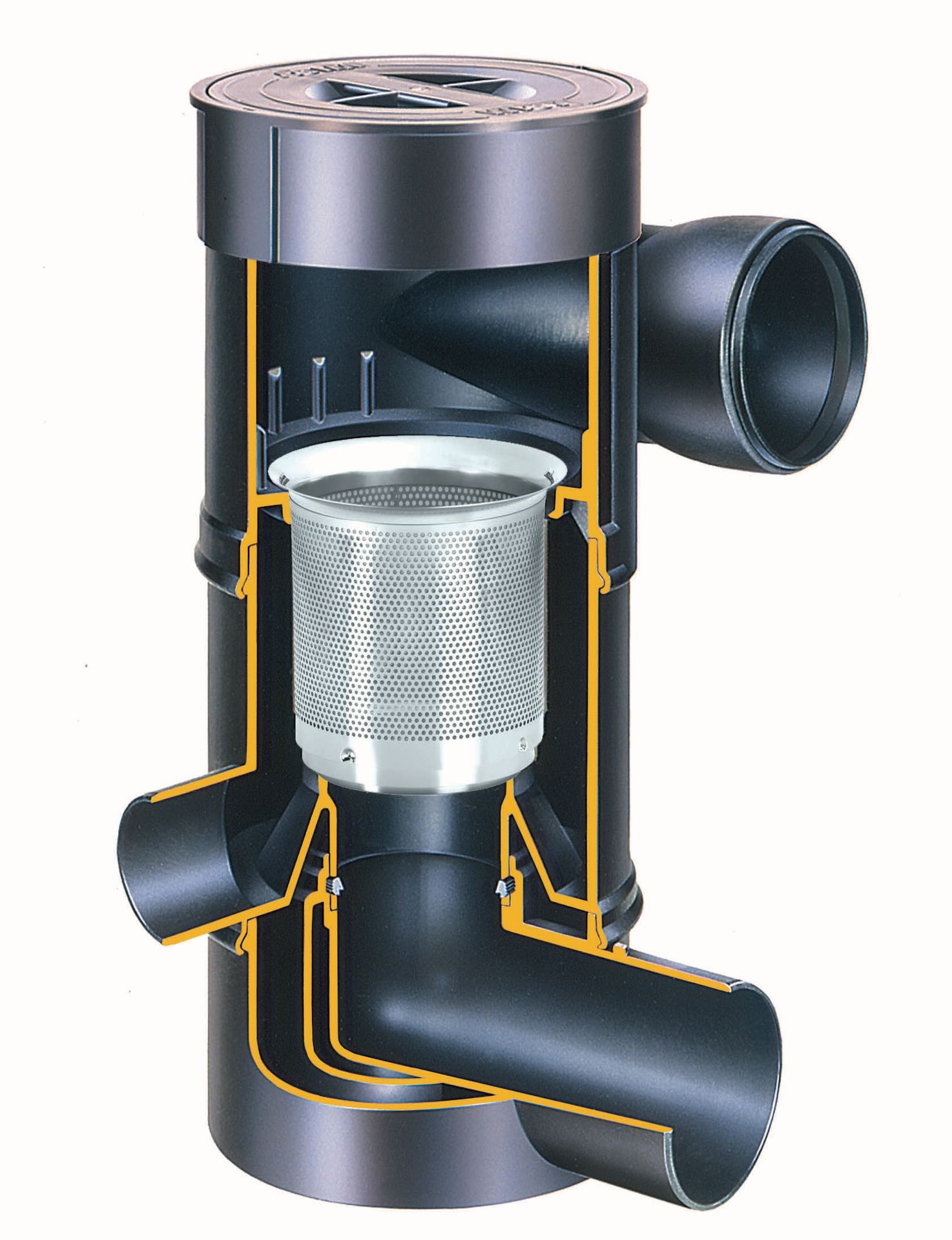

The Vortex Fine Filter WFF 100 is an efficient, self-cleaning rainwater pre-filtration unit designed for installation either above ground or in the ground ahead of cisterns or storage tanks.

It accommodates roof catchment areas up to approximately 200 m², making it ideal for family homes.

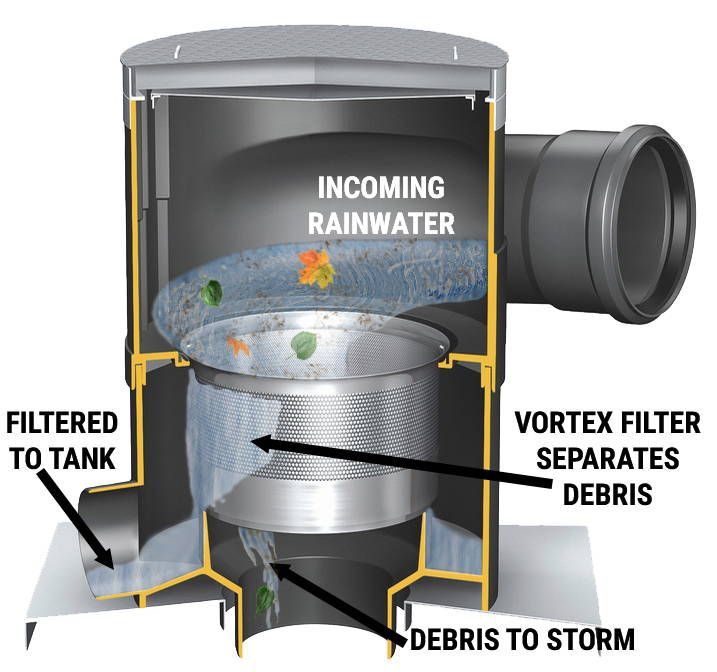

A vertically oriented fine stainless-steel mesh (standard 0.28 mm, optional 0.44 mm) captures leaves, moss, pollen, and other debris, while the vertical orientation ensures continuous cleaning—dirt does not clog but is flushed out automatically, reducing maintenance.

Each cycle uses a small portion of incoming rainwater to rinse the mesh, achieving up to 90 % water capture while keeping the system clean.

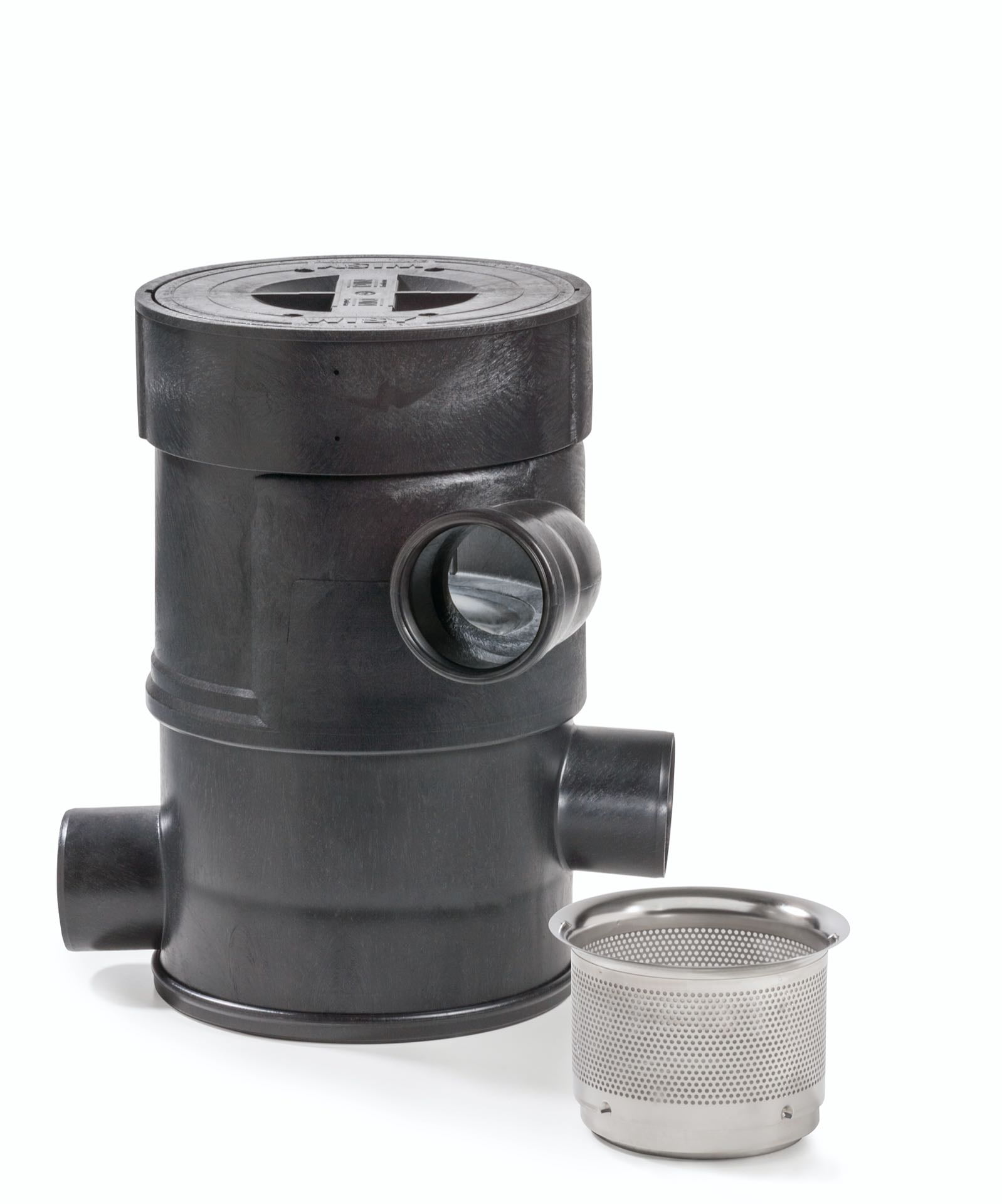

The filter insert is durable and dishwasher-safe, enabling only biannual inspections and cistern cleaning intervals of 10–15 years. Its design preserves full pipe cross-sectional area, preventing blockage—even a tennis ball can pass through.

The housing is constructed from robust polypropylene, with a lifting handle and optional extension tube for easy inspection.

Overall, the WFF 100 offers reliable, long-lasting, low-maintenance filtration, providing high-quality rainwater for garden use, toilet flushing, laundry, and other non-potable applications.

Key characteristics and environmental benefits

Key Characteristics

  • Suitable for roof catchment areas up to ~200 m²

  • Self-cleaning vertical stainless-steel mesh (0.28 mm or 0.44 mm)

  • Filters out leaves, moss, pollen, and fine debris

  • Maintains full pipe diameter to prevent blockages

  • Captures up to 90 % of rainwater passing through

  • Durable polypropylene housing for long service life

  • Minimal maintenance – only two inspections per year

  • Dishwasher-safe filter insert for easy cleaning

  • Optional extension tube for flexible installation depth

  • Designed for above-ground or in-ground installation before storage tanks

Environmental Benefits

  • Promotes efficient rooftop rainwater harvesting, reducing reliance on mains water

  • Helps conserve potable water for essential uses

  • Supports sustainable water reuse for irrigation, toilet flushing, and laundry

  • Minimizes water waste through high filtration efficiency

  • Reduces risk of groundwater depletion and municipal water stress

  • Prevents pollutants and debris from entering stored rainwater

  • Enables long-term cistern cleanliness, reducing chemical cleaning needs

  • Low maintenance requirements reduce operational energy and resource use

  • Durable design extends product lifespan, lowering material waste

  • Supports decentralized water management and climate resilience



About the Company

WISY AG is a German pioneer in rainwater harvesting and sustainable water management, with more than three decades of expertise in designing high-quality stainless-steel filtration systems, storage tanks, and distribution solutions. Established in 1989, WISY focuses on creating durable, self-cleaning vortex filters that ensure rainwater remains clean, oxygen-rich, and free from stagnation, reducing the need for chemical treatment. All products are manufactured in Germany under strict ISO 9001 and ISO 14001 standards, reflecting the company’s commitment to quality and environmental responsibility. WISY’s solutions are designed for both residential and commercial applications, enabling significant reductions in potable water usage for non-potable needs such as irrigation, toilet flushing, and industrial processes. By championing long product lifespans, recyclable materials, and low-maintenance operation, WISY promotes circular water use and supports global sustainability efforts. Its guiding principle—"Rainwater is our passion"—drives innovations that help communities worldwide manage water resources efficiently while protecting the environment.
